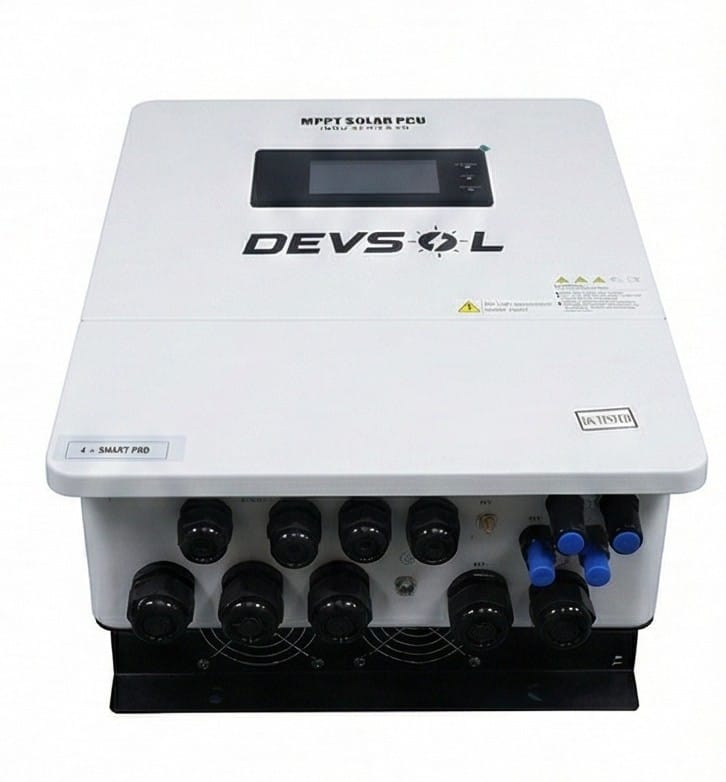

Hybrid 6kw 48v IP 65 (transformer-less)
Category: Hybrid 9G inverter
₹120,750
Price inclusive of all taxes
Free Shipping
The DEVSOL 6kW Hybrid Solar Inverter is a powerful 48V system designed for high efficiency and durability. It supports both lithium and lead-acid batteries, offers a strong 6000W output, 9600W solar input, IP66 outdoor protection, and comes with in-built WiFi for smart monitoring and control.
Key Highlights
- IP66 Rugged Protection – Fully dustproof, waterproof, and built to perform even in harsh weather
- 6000W Pure Sine Wave Output
- High Solar Input Capacity: 9600W
- Compatible with Lithium & Lead-Acid Batteries
- Smart Hybrid Operation (Solar + Grid + Battery)
- Wide MPPT Operating Voltage Range
- Fast AC Charging with up to 100A Max Current
- Stable & Reliable for Home + Commercial Use
The DEVHYD 6kW HYD Hybrid Solar Inverter is an advanced energy management solution that seamlessly integrates solar power, grid supply, and battery storage. Designed for homes, offices, farms, and commercial spaces, this inverter delivers excellent performance with pure sine wave output and high conversion efficiency.
A major highlight of this model is its IP65 protection rating, making it highly resistant to dust, humidity, and water splashes. This rugged design ensures stable operation even in outdoor and challenging environments.
Additionally, the inverter includes in-built WiFi, enabling easy monitoring through a mobile app. Users can track solar generation, load usage, battery status, and system health from anywhere.
Powered by Nexus Solar Energy Pvt. Ltd., this hybrid inverter offers exceptional reliability, long lifespan, and strong performance.
Key Highlights
- IP65 Protection – Weather-resistant, dust-resistant, and safe for outdoor installation
- In-built WiFi – Smart app monitoring & remote management
- 6000W Pure Sine Wave Output
- High Solar Input Capacity – 9600W
- Hybrid Operation (Solar + Grid + Battery)
- Supports Lithium & Lead-Acid Batteries
- Wide MPPT Voltage Range for Better Efficiency
- Fast AC Charging up to 100A
- Ideal for Home, Commercial & Industrial Use
Technical Specifications
Inverter Mode
- Rated Power: 6000VA / 6000W
- DC Input: 48VDC, 142.9A
- Power Factor: 1.0
- AC Output: 230VAC, 50/60Hz, 26.1A
AC Charging Mode
- AC Input: 230VAC, 50/60Hz, 40A
- DC Output: 54VDC
- Max Charging Current: 100A (Default 30A)
- AC Output: 230VAC, 50/60Hz, 26.1A
Solar Charging Mode
- Nominal PV Voltage: 2 × 300VDC
- Max Solar Power: 9600W
- Operating Voltage Range: 120–450VDC
- Max Solar Voltage (VOC): 500VDC
- Max PV Input Current: 2 × 16A
Battery Compatibility
- Lithium (LiFePO4)
- Lead-Acid / Tubular / VRLA / SMF
- Battery Bank Voltage: 48V
Additional Details
- Protection Rating: IP65
- Smart Monitoring: In-built WiFi
- Operating Temperature: –25°C to 50°C
- Model: DEVHYD 6KW HYD
- Brand: Devsol Energy
