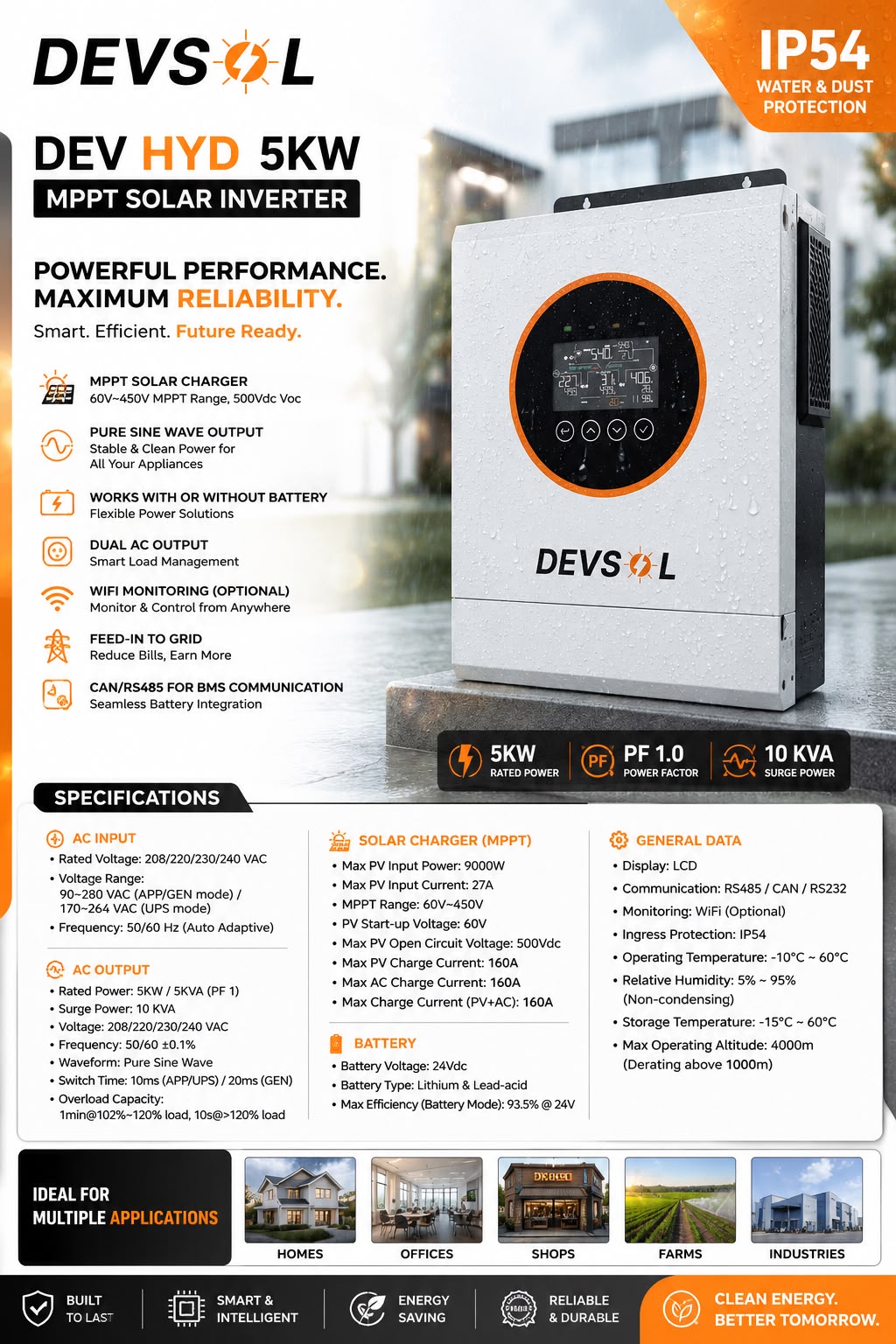

The DEVSOL DEV HYD 5KW 24V is a powerful and intelligent MPPT solar hybrid inverter designed for homes, offices, shops, farms and commercial applications. It delivers 5KW pure sine wave output with a high surge capacity of 10KVA.

Its wide 60V–450V MPPT operating range supports up to 9000W solar panel input. The inverter is compatible with both lithium and lead-acid batteries and can also operate without a battery. Dual AC output, smart BMS communication and optional WiFi monitoring make it a reliable and future-ready energy solution.

⸻

Highlighted Features

* 5KW / 5KVA rated output power
* 10KVA surge power capacity
* IP54 dust and water-resistant design
* Maximum 9000W solar PV input
* Wide MPPT voltage range: 60V–450V
* Maximum PV open-circuit voltage: 500V DC
* 24V battery system
* Compatible with lithium and lead-acid batteries
* Maximum 160A solar charging current
* Maximum 160A AC charging current
* Pure sine wave AC output
* Power factor 1.0
* Works with or without battery
* Dual AC output for smart load management
* Simultaneous solar and grid load support
* CAN, RS485 and RS232 communication
* BMS communication support
* Optional WiFi remote monitoring
* Grid feed-in capability
* LCD display with real-time system information
* Fast transfer time for uninterrupted power supply

⸻

Technical Specifications

AC Input

Parameter    Specification
Rated Input Voltage    208V / 220V / 230V / 240V AC
Connection    L + N + PE
Input Voltage Range – APP/GEN Mode    90V–280V AC
Input Voltage Range – UPS Mode    170V–264V AC
Input Frequency    50Hz / 60Hz, Auto Adaptive

AC Output

Parameter    Specification
Rated Output Power    5KW / 5KVA
Power Factor    1.0
Surge Power    10KVA
Output Voltage    208V / 220V / 230V / 240V AC
Output Frequency    50Hz / 60Hz ±0.1%
Output Waveform    Pure Sine Wave
Transfer Time – APP/UPS Mode    10ms
Transfer Time – Generator Mode    20ms
Overload Capacity    1 minute at 102%–120% load
High Overload Capacity    10 seconds above 120% load
Maximum Efficiency in Battery Mode    93.5% at 24V
Dual AC Output    Supported

Note: Output power may reduce to approximately 90% when the output voltage is configured at 208V.

Solar MPPT Charger

Parameter    Specification
Solar Charger Type    MPPT
Maximum Solar PV Input Power    9000W
Maximum PV Input Current    27A
MPPT Operating Voltage Range    60V–450V DC
PV Start-up Voltage    60V DC
Maximum PV Open-Circuit Voltage    500V DC
Maximum PV Charging Current    160A
Maximum AC Charging Current    160A
Maximum Combined Charging Current    160A

Battery Specifications

Parameter    Specification
Battery System Voltage    24V DC
Supported Battery Types    Lithium and Lead-Acid
Batteryless Operation    Supported
BMS Communication    CAN / RS485
Maximum Charging Current    160A

Communication and Monitoring

Parameter    Specification
Display    LCD
Communication Interfaces    RS485 / CAN / RS232
BMS Communication    Supported
WiFi Monitoring    Optional
Remote Monitoring    Available with optional WiFi module

Protection and Environmental Specifications

Parameter    Specification
Ingress Protection Rating    IP54
Operating Temperature    -10°C to 60°C
Storage Temperature    -15°C to 60°C
Relative Humidity    5%–95%, Non-condensing
Maximum Operating Altitude    4000 metres
Altitude Derating    Above 1000 metres

⸻

Smart Power Management

The DEV HYD 5KW inverter can intelligently use solar power, battery power and grid supply according to the selected operating priority. Its dual AC output allows essential and non-essential loads to be managed separately for better battery backup and energy efficiency.

Suitable Applications

* Residential solar power systems
* Homes and villas
* Offices
* Retail shops and showrooms
* Farms and agricultural applications
* Small commercial establishments
* Backup power systems
* Lithium battery-based solar systems
* Areas with frequent power cuts

Why Choose DEVSOL DEV HYD 5KW?

The DEV HYD 5KW combines high solar capacity, fast charging, pure sine wave output, advanced BMS communication and IP54 protection in one compact inverter. Its ability to operate without a battery and support both lithium and lead-acid batteries makes it a flexible solution for present and future energy requirements.

Manufactured by Nexus Solar Energy Pvt. Ltd.

WiFi monitoring is optional. Grid feed-in functionality must be configured according to applicable local regulations and installation requirements.
