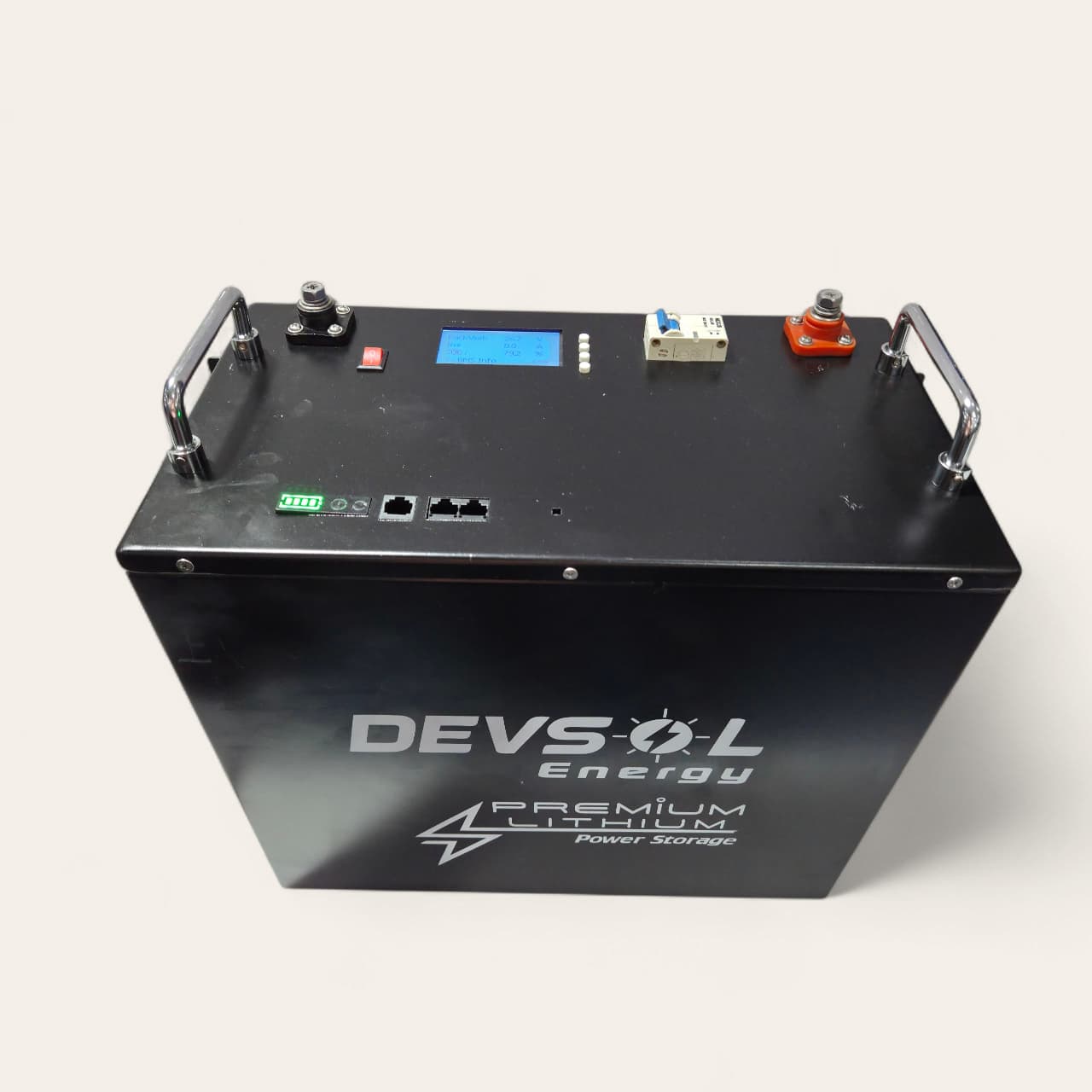

Devsol 100Ah 51.2V Lithium Battery PO4
Category: Lithium PO4 Battery
₹135,700
Price inclusive of all taxes
Online freight including shipping GST is capped at 2% of the discounted goods total including GST; free at ₹5,00,000 and above. The applicable freight is shown at checkout before payment.
DEVSOL 51.2V 100Ah LiFePO4 battery for a compatible solar or hybrid inverter. Nominal stored energy is 5.12kWh. Smart BMS continuous discharge limit: 100A; recommended discharge: 50A (0.5C). Manufacturer-declared DEVSOL Premium cycle-life rating: 6,500+. This is not an independent laboratory test result or a guaranteed calendar life.
LCD-equipped 8S/16S models provide individual cell voltage, temperature and cycle-count readings. Approved matched-model parallel expansion is supported. Active or passive cell balancing depends on the installed variant.
Match the exact inverter voltage range, charge current, BMS protocol, cable pinout and firmware. Supported Nexus / DEVSOL and Deye / Voltronic protocol configurations require exact-model commissioning. The BMS ceiling is not the recommended daily load. Price covers the battery; inverter and installation are separate.
BIS coverage is limited to the certified 12V model and must match the nameplate and certificate annex; it does not extend to 25.6V/51.2V models. For 15-year* offers, the policy gives free replacement for covered manufacturing faults in years 1–3, and replacement at 50% MRP discount in years 4–15, subject to written conditions. See the exact model warranty card.
Solar lithium battery selection guide · Battery manufacturer and warranty guide
DEVSOL 51.2V 100Ah LiFePO4 battery for a compatible solar or hybrid inverter. Nominal stored energy is 5.12kWh. Smart BMS continuous discharge limit: 100A; recommended discharge: 50A (0.5C). Manufacturer-declared DEVSOL Premium cycle-life rating: 6,500+. This is not an independent laboratory test result or a guaranteed calendar life.
LCD-equipped 8S/16S models provide individual cell voltage, temperature and cycle-count readings. Approved matched-model parallel expansion is supported. Active or passive cell balancing depends on the installed variant.
Match the exact inverter voltage range, charge current, BMS protocol, cable pinout and firmware. Supported Nexus / DEVSOL and Deye / Voltronic protocol configurations require exact-model commissioning. The BMS ceiling is not the recommended daily load. Price covers the battery; inverter and installation are separate.
BIS coverage is limited to the certified 12V model and must match the nameplate and certificate annex; it does not extend to 25.6V/51.2V models. For 15-year* offers, the policy gives free replacement for covered manufacturing faults in years 1–3, and replacement at 50% MRP discount in years 4–15, subject to written conditions. See the exact model warranty card.
Solar lithium battery selection guide · Battery manufacturer and warranty guide
Existing model technical data
| Description | Particulars |
| Brand | Nexus solar |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah(C5,0.2Cto40.5V @25’C |
| Discharge Current(Max.) | 100A |
| Discharge End Voltage | 43.2V |
| Charge Current(Recomm.) | 20A |
| Charge Current(Max.) | 100A |
| Charge Voltage | 57.6+0.5V |
| Dimension(WxDxH)mm | 442.5×400.0x133.0(mm) |
| Typical Weight | 42.1Kg |
| Layout of Front Pannel | |
| Communication Ports | can/Rs485 |
| Communications in Parallel | Max 16 Modules in Parallel |
| Reset Key | Available |
| Terminal Size | M8(Screw Size) |
| LCD Screen | Available |
| Breaker | Standard |
| Maintenance Interface | Standard |
| Operation Environments | |
| Temperature Range | Discharge(-20 to 60’C), Charge(0 to +60’C), Storage(0 to 40’C) |
| Temperature Recommendation | Discharge(+15 to +35’C), Charge(+15 to +35’C), Storage(+15 to +35’C) |
| Humidity | 5 to 95% |
| Scalability | upto 76.8Kwh(16Groups) |
