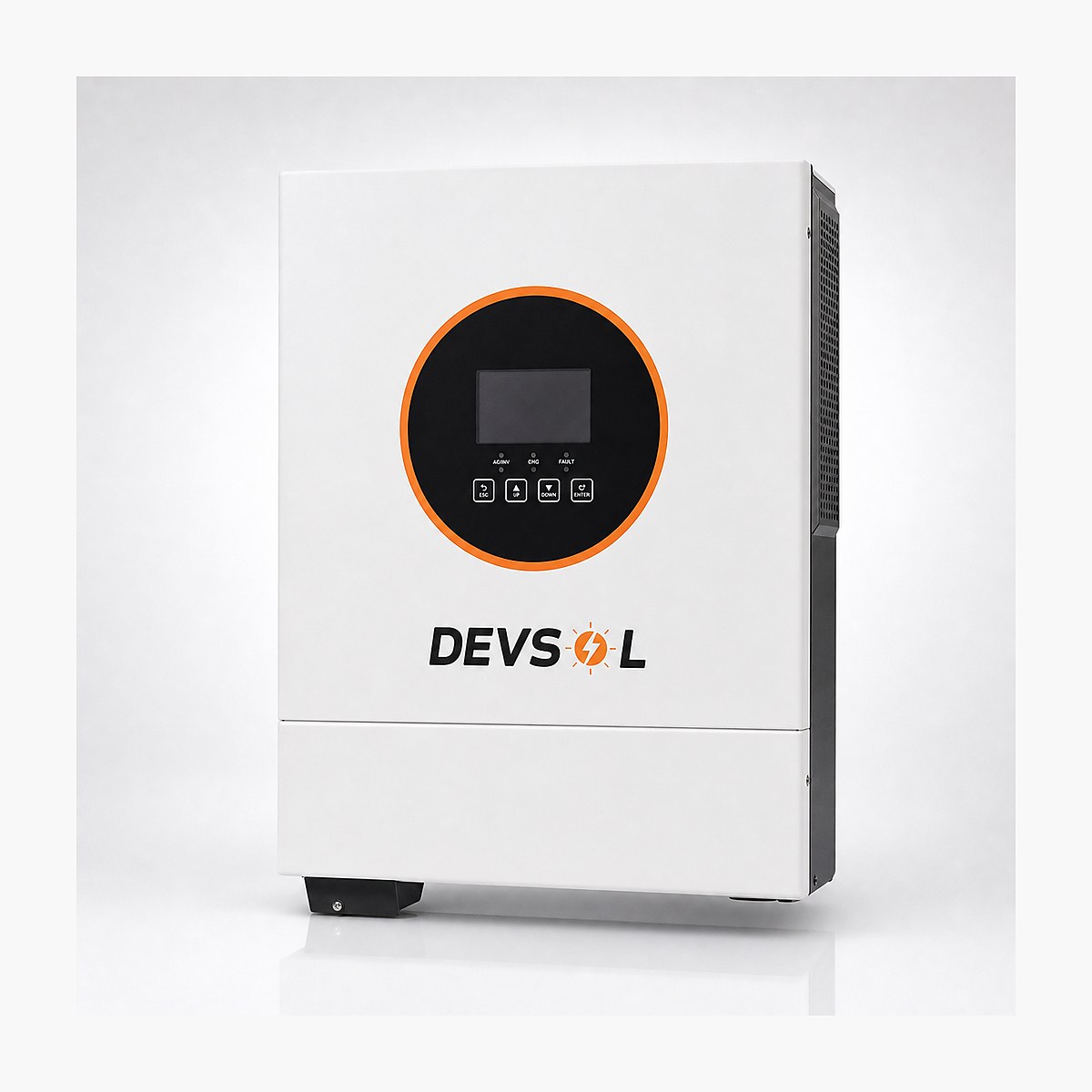

6kw 48v hybird inverter ip54
Category: Hybrid 8G inverter
₹81,682
₹91,520 10% off
Price inclusive of all taxes
Free Shipping
DEVSOL DEV HYD 6 KW is a 6kW 48V hybrid solar inverter manufactured by Nexus Solar Energy Pvt. Ltd. for homes, offices, shops, farmhouses and commercial solar-backup systems. This IP54 model supports up to 9,000W PV input, a 60-450V MPPT operating range, 500V maximum PV open-circuit voltage, 120A maximum solar/AC charging, lithium and lead-acid batteries, battery-less operation, pure sine-wave output, dual AC output, BMS communication and optional Wi-Fi monitoring. The model designation DEV HYD 6 KW is covered under Nexus Solar Energy BIS inverter licence R-93035050.
- 6kW rated hybrid output
- 48V battery system
- IP54 protected enclosure
- Up to 9kW PV input
- 60-450V MPPT operating range
- 80V PV start-up voltage
- 500V maximum PV open-circuit voltage
- 27A maximum PV input current
- 120A maximum charging current
- Lithium and lead-acid battery support
- CAN / RS485 BMS communication
- Battery-less operation supported
- Pure sine-wave AC output
- Dual AC output
- Feed-in to grid function
- Optional Wi-Fi remote monitoring
- 5-inch LCD display
- 12kVA surge capability
- BIS model designation DEV HYD 6 KW
- Manufactured by Nexus Solar Energy Pvt. Ltd.
- 2-year warranty* for IP54 model
DEVSOL 6kW Hybrid Inverter 48V – IP54, MPPT and BIS Registered
The DEVSOL DEV HYD 6 KW is a 6kW 48V hybrid solar inverter manufactured by Nexus Solar Energy Pvt. Ltd. for buyers who need solar generation, battery backup and grid integration in one system. The IP54 model supports up to 9kW of PV input, a wide 60-450V MPPT range, 120A charging, battery-less operation, lithium or lead-acid batteries, dual AC outputs and BMS communication. Its BIS model designation is DEV HYD 6 KW under Nexus Solar Energy published inverter licence R-93035050.
A 6kW hybrid inverter combines the functions of a solar inverter, battery charger and UPS in a single unit. During the day, solar panels charge the batteries and power your loads. When solar energy is insufficient, the grid automatically supplements the supply. During a power cut, the inverter switches to battery backup in milliseconds to keep critical loads running. This makes the DEVSOL 6kW hybrid inverter suitable for homes, offices, shops, farmhouses and light commercial installations across India.
Why This 6kW Hybrid Inverter Is Different from Other Nexus 6kW Models
Nexus Solar Energy offers multiple 6kW hybrid inverter models. This new IP54 product is distinct from the existing variants:
| Feature | This IP54 Model | Existing IP21 Model | Existing IP65 Model |
|---|---|---|---|
| Protection | IP54 | IP21 | IP65 |
| MPPT | Single MPPT | Check live data | Dual MPPT |
| PV Input | Up to 9kW | Check live data | Check live data |
| MPPT Range | 60-450V | Check live data | Check live data |
| Charge Current | 120A | Check live data | Check live data |
| Dual AC Output | Yes | Check live data | Check live data |
| Warranty | 2 years* | Check live data | Check live data |
Each model serves a different use case. The IP21 model is suitable for protected indoor environments. The IP65 model provides higher ingress protection with Dual MPPT for larger arrays. This IP54 model offers a middle ground with solid protection, 9kW PV input, dual AC output and a 2-year warranty.
| Buyer Check | DEVSOL DEV HYD 6 KW |
|---|---|
| Rated output | 6kW |
| Battery | 48V |
| PV input | Up to 9kW |
| MPPT | 60-450V |
| Max PV Voc | 500V |
| Charge current | Up to 120A |
| Battery-less | Supported |
| Battery types | Lithium / Lead-acid |
| Output waveform | Pure sine wave |
| Surge | 12kVA |
| Protection | IP54 |
| BIS model | DEV HYD 6 KW |
| Warranty | 2 years* |
