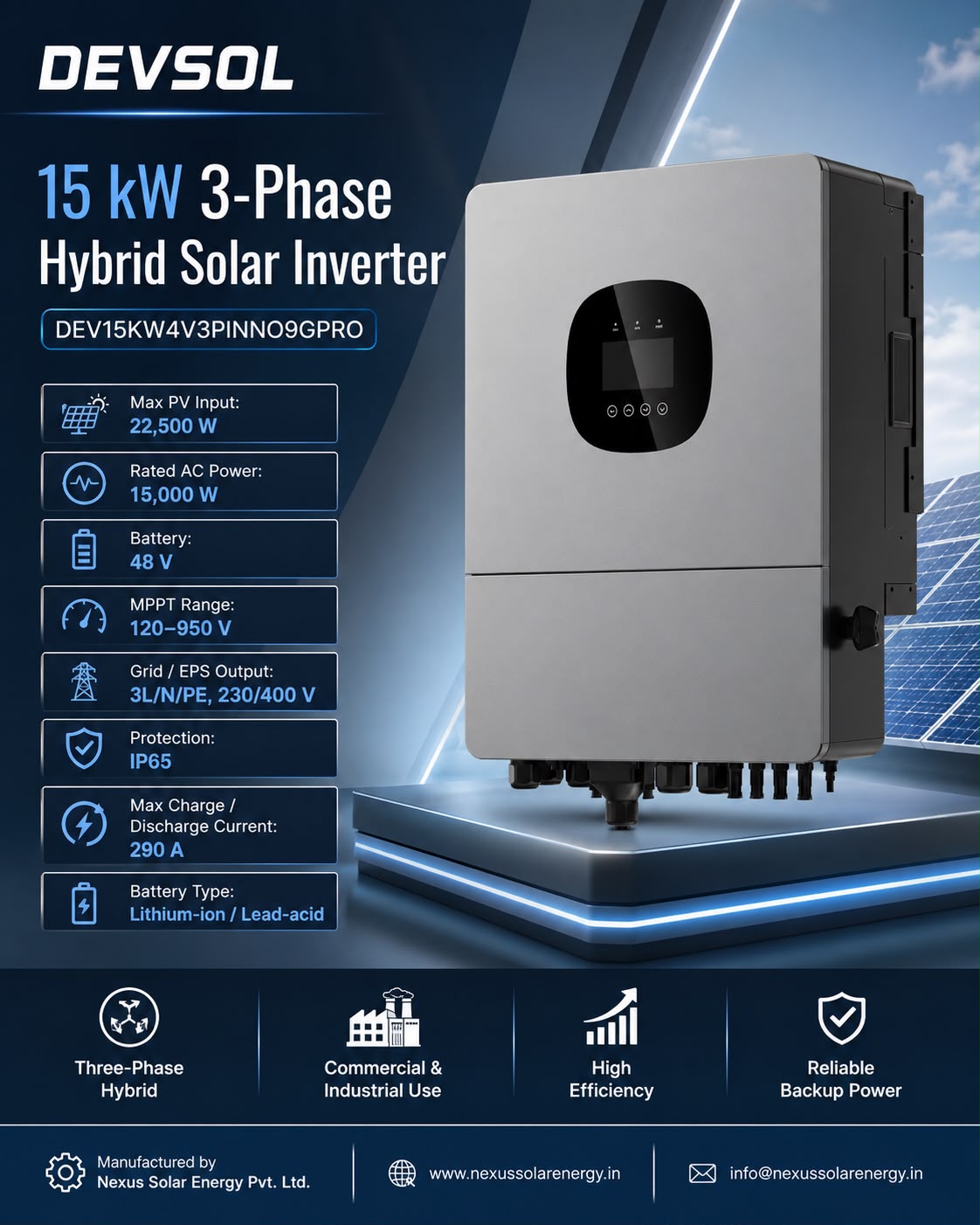

TECHNICAL SPECIFICATIONS PV INPUT Maximum PV Power (DC) 22,500 W Maximum PV Voltage (DC) 1,000 V MPPT Voltage Range (DC) 120-950 V Short-Circuit Current (Isc) 36 A Maximum PV Current 30 A ON-GRID AC OUTPUT Rated Voltage 3L/N/PE, 230/400 V AC Rated Frequency 50/60 Hz Rated Active Power 15,000 W Rated Apparent Power 15,000 VA Maximum Apparent Power 16,500 VA Maximum Grid Current 24 A Maximum Combined Current 35 A BATTERY Maximum Apparent Power from Grid 24,000 VA Rated Battery Voltage 48 V DC Battery Voltage Range 40-60 V DC Maximum Charge / Discharge Current 290 A Battery Type Lithium-ion / Lead-acid EPS / BACKUP OUTPUT Rated Voltage 3L/N/PE, 230/400 V AC Rated Frequency 50/60 Hz Rated Apparent Power 15,000 VA Maximum Apparent Power 16,500 VA Maximum Current 24 A GENERAL Power Factor Range 0.8 inductive to 0.8 capacitive Operating Temperature-25°C to +60°C Inverter Topology Non-isolated Ingress Protection IP65 Protection Class Class I Maximum Installation Altitude Up to 4,000 m Overvoltage Category PV: Category II; Mains: Category III
